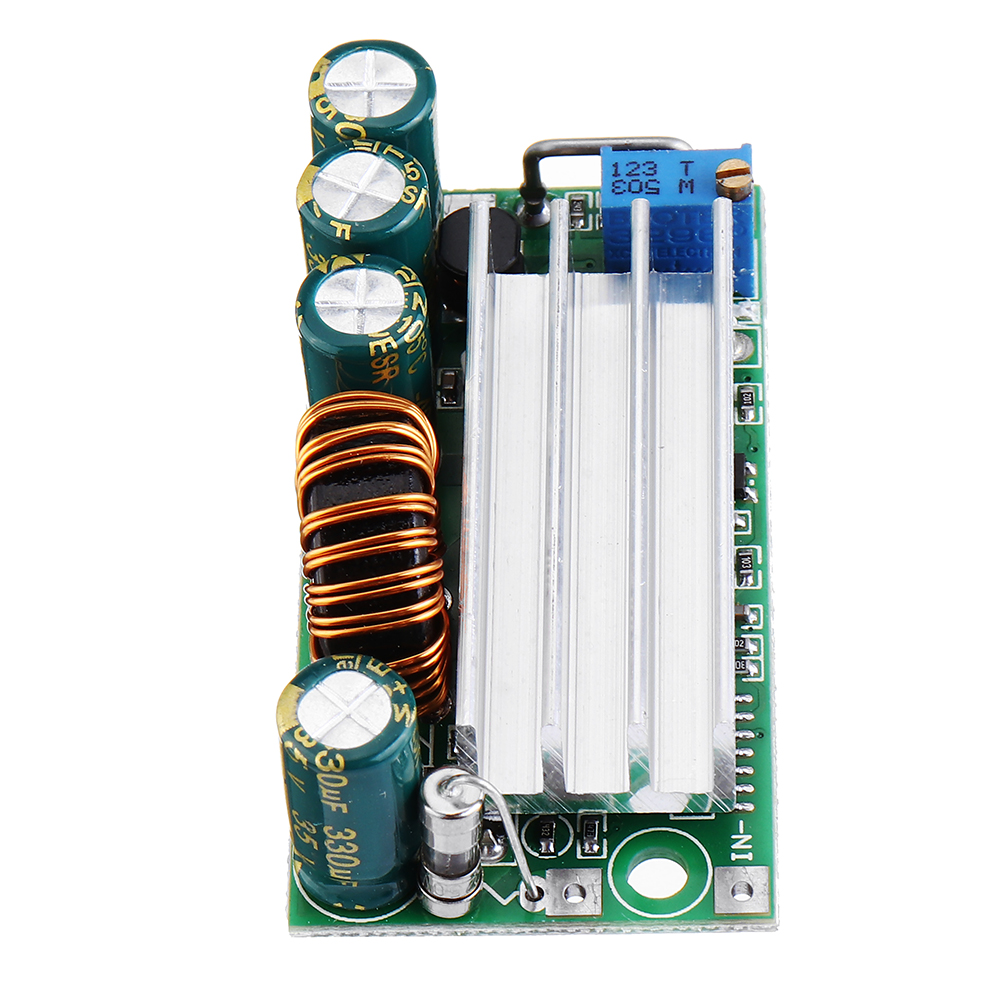

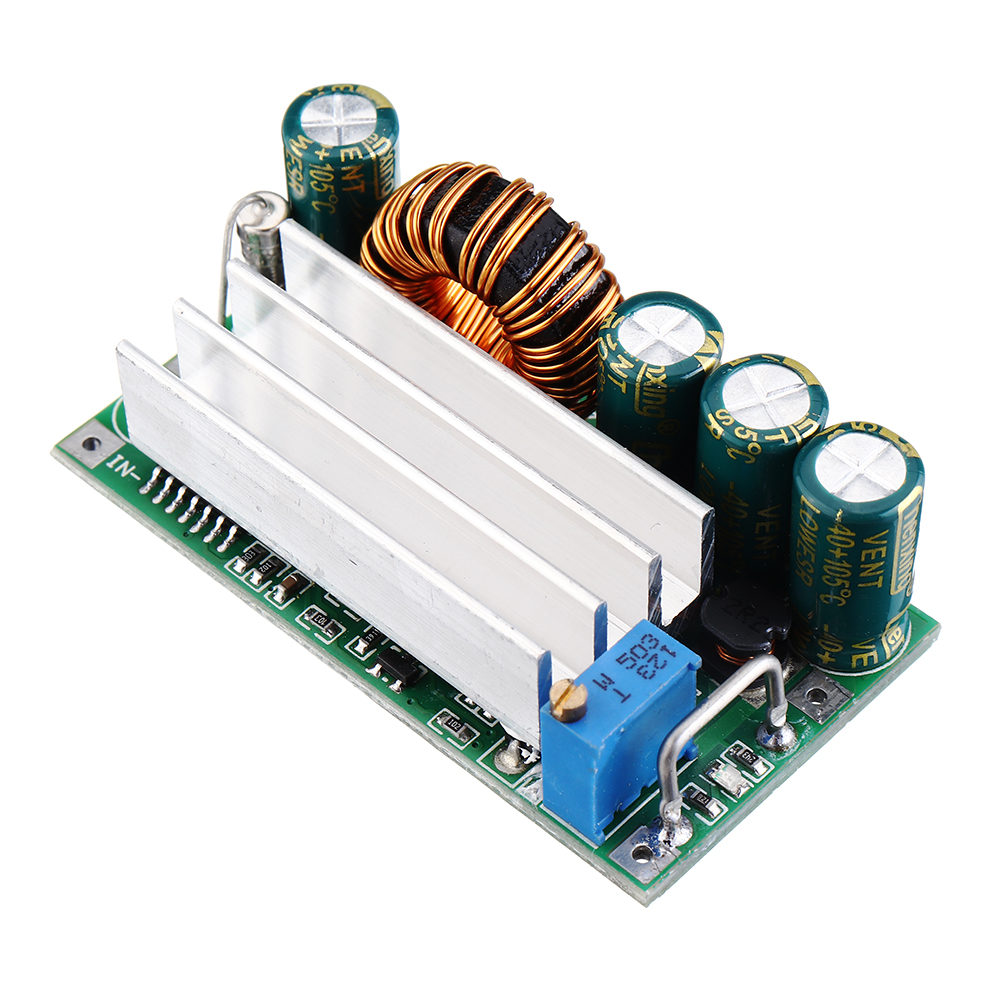

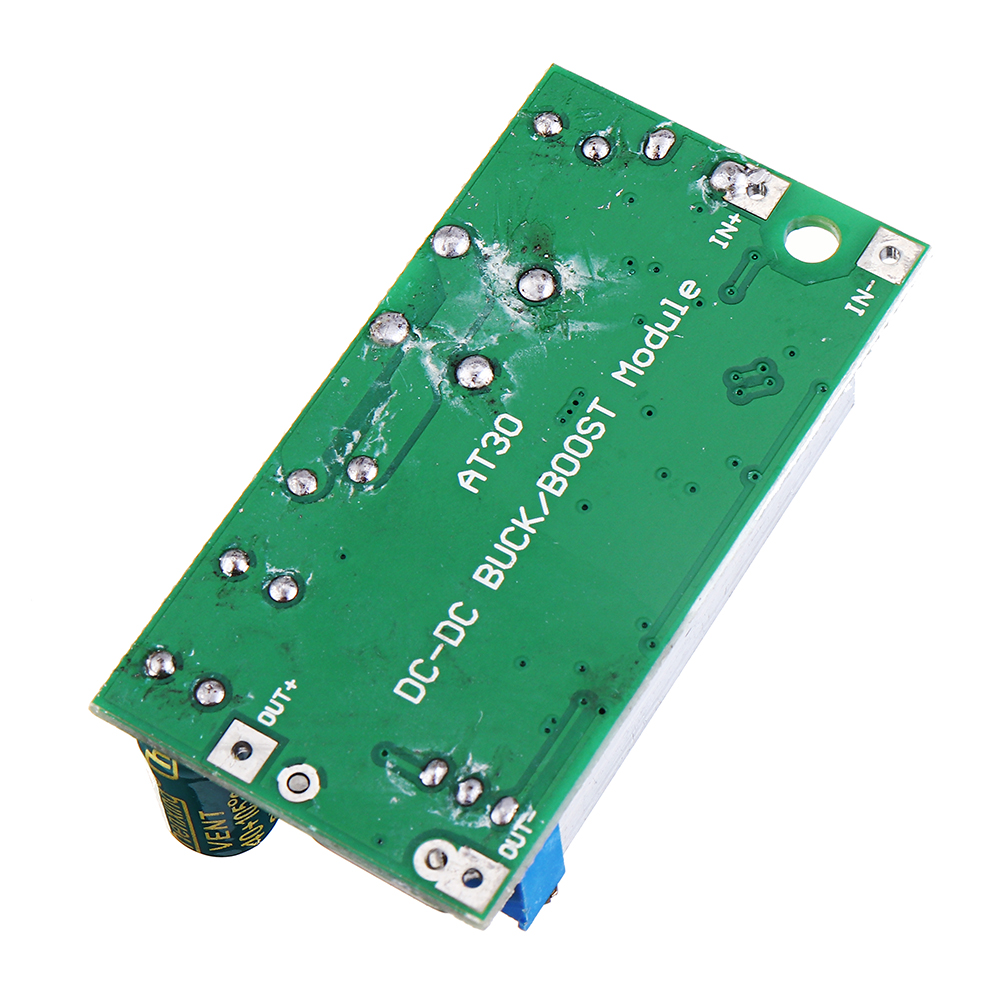

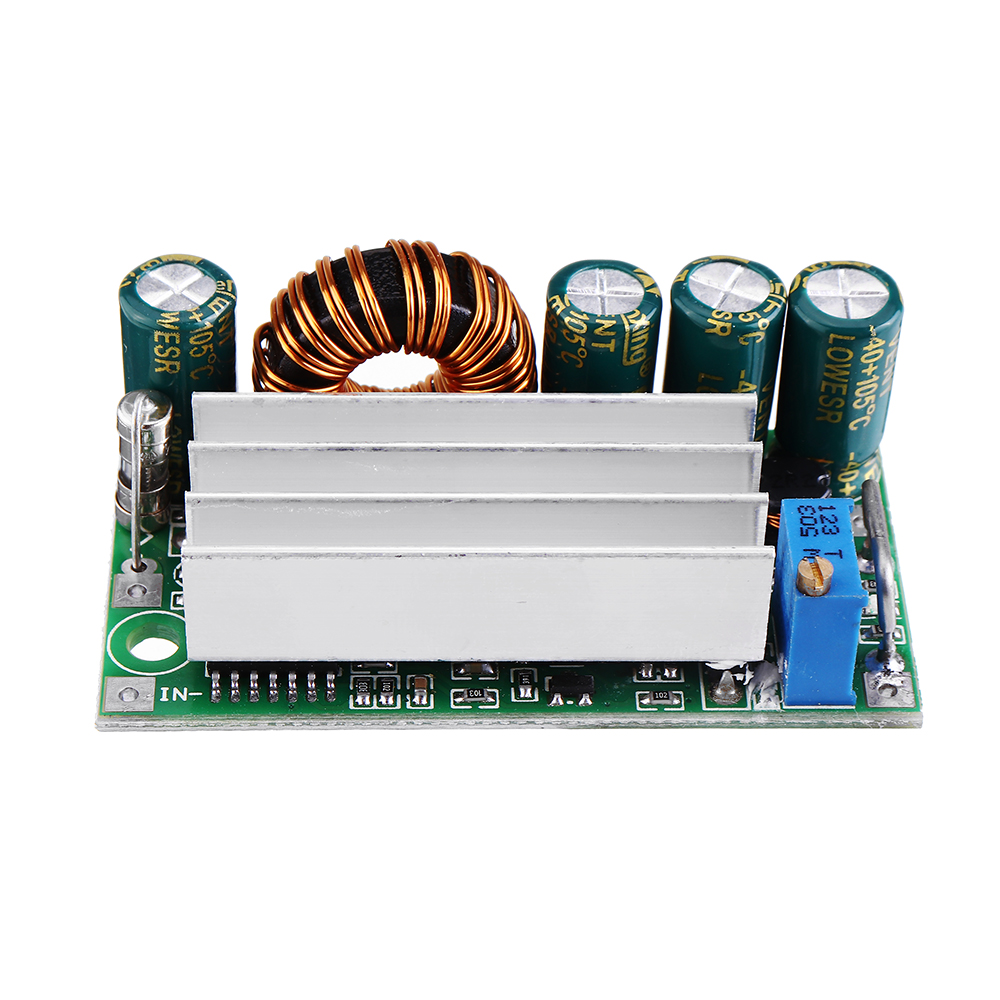

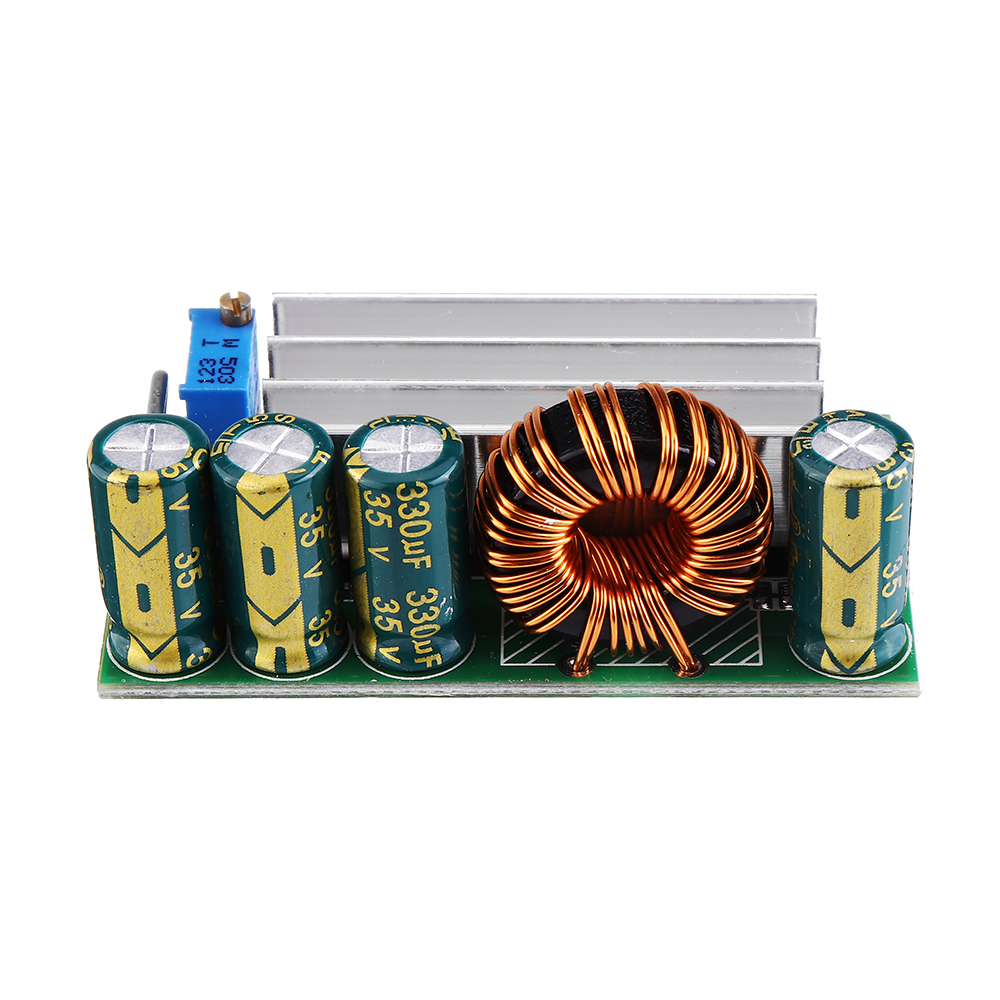

Auto Step Up Down Power Supply AT30 Converter Buck Boost Module Replace XL6009 4-30V To 0.5-30V DC

Availability: ในคลังสินค้า

ราคาปกติ: ฿474.00

Special Price ฿263.00

You Save: ฿211.00 (45%)

รายละเอียด

Specifications:

Input voltage: 4-30V DC
Output voltage: 0.5-30V DC
Output current: 3A, 4A with cooling fan
Output power: 30W without cooling fan,60W with cooling fan
Output ripple: 30MV (Full output voltage)
Conversion efficiency: Boost, 88%-91%; Buck,87%-90%.
Short circuit protection: Yes
Working frequency: 180KHz
Size: 48x23x21mm

Features:

1. It cao buck and boost.
-No matter how large is the input voltage, the output voltage can be fixed on 12V.
-When input voltage is 12V, the output voltage can be bucked to 5V, or boosted to 24V.
2. It is more efficient, more power than the XL6009-type module.
3. The ultra-low output voltage ripple
- The output voltage ripple is only 20 mV when the input voltage is 12V, current is 3A, especially for the audio / power amplifier board, analog circuit power supply!
4. With a mobile phone charger or battery-powered, you can achieve 0.5 to 30 volts adjustable DC power supply, very convenient!

Package Included:

1 x Auto Step Up Down Power Supply AT30 Converter Buck Boost Module Replace XL6009
