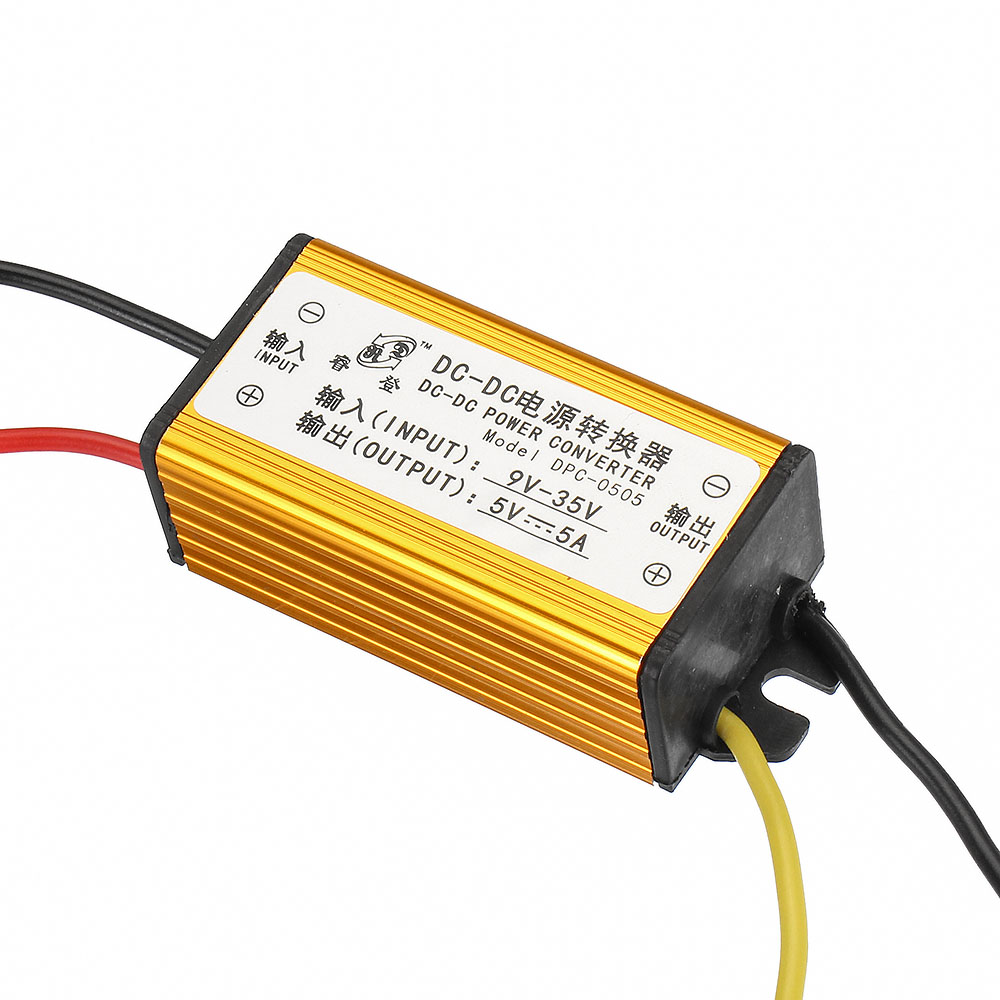

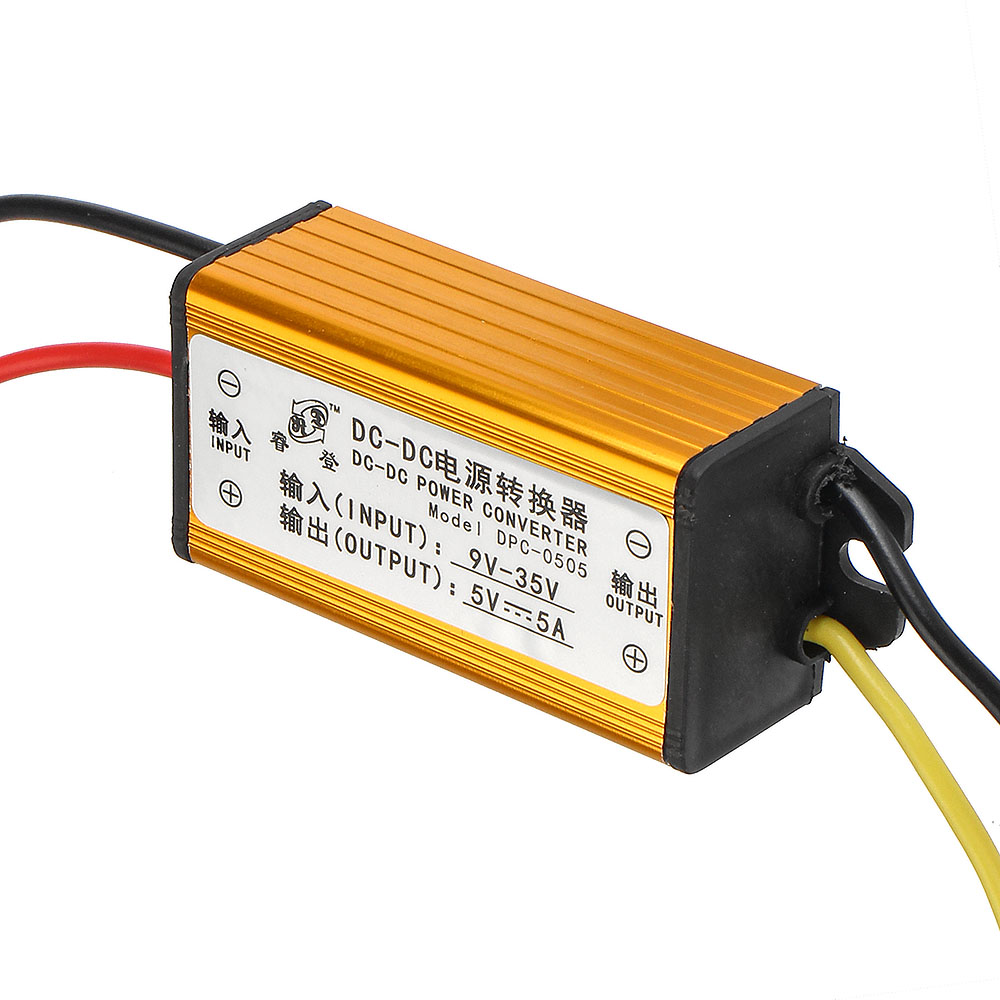

DC-DC 12V 24V to 5V 5A Buck Converter 9-35V Input Step Down Power Supply Module Car LED Power Converter

Availability: ในคลังสินค้า

ราคาปกติ: ฿420.00

Special Price ฿233.00

You Save: ฿187.00 (45%)

รายละเอียด

Features:

1.This module adopts synchronous rectification. And the efficiency is up to 95% with low calorific value.
2.There are many functions, reverse polarity protection and short-circuit protection and etc. It can work normally after remove away the problems.
3.This module has: waterproof! Dustproof! Shockproof! Three functions integrate with one, USES the high quality transparent epoxy glue potting.
4.This module can be widely used in bus, large trucks, cars, solar power, bus display, taxi advertising screen, etc. it never influence car radio, the stereo, LCD TV, LED, car navigation, walkie-talkie and monitoring system, easy to deal with the bad environment.

Specifications:

Rectifying mode: synchronous rectification Input voltage: 9-35V
Output voltage: 5v Output current: 5A (Continuous working) 7A (MAX)
Load regulation: ±1% Voltage regulation: ±2%
Output ripples: 50mV (MAX) Output ripple50mV (MAX)
Conversion efficiency: 95% The low pressure differential: 4V

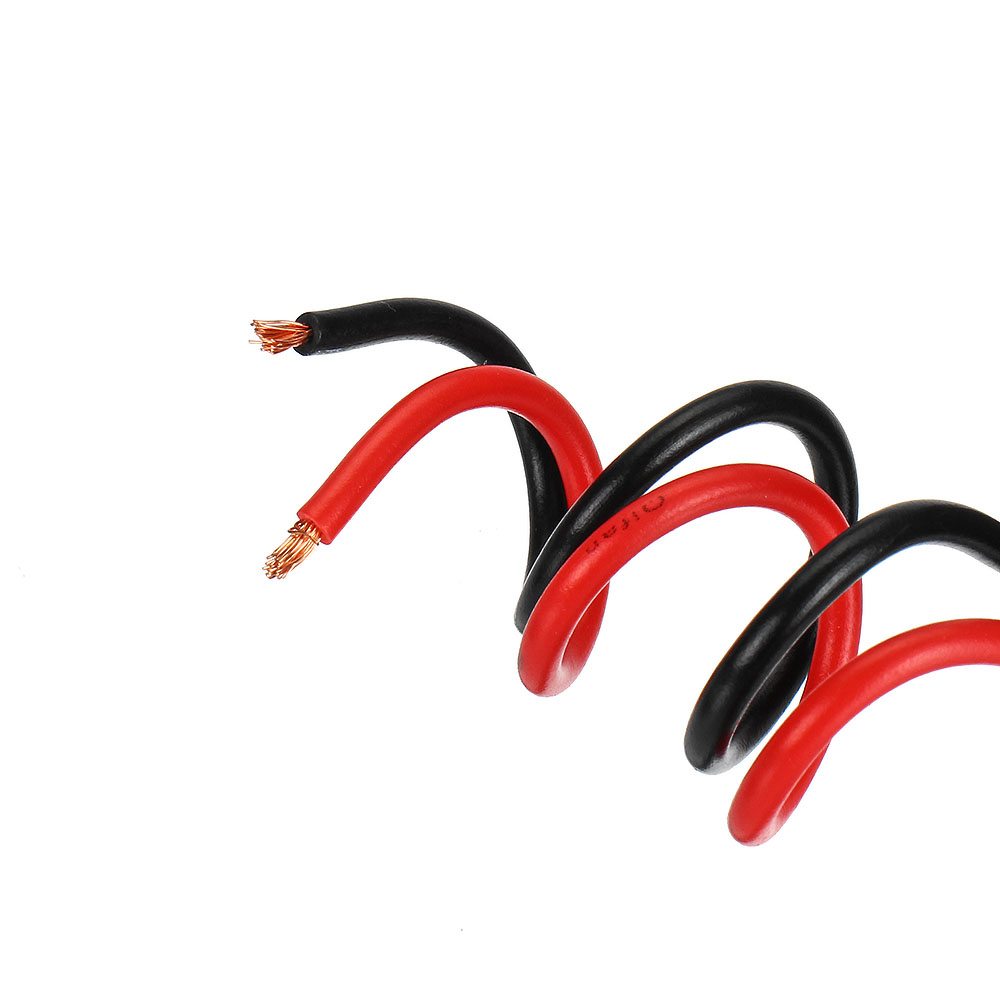

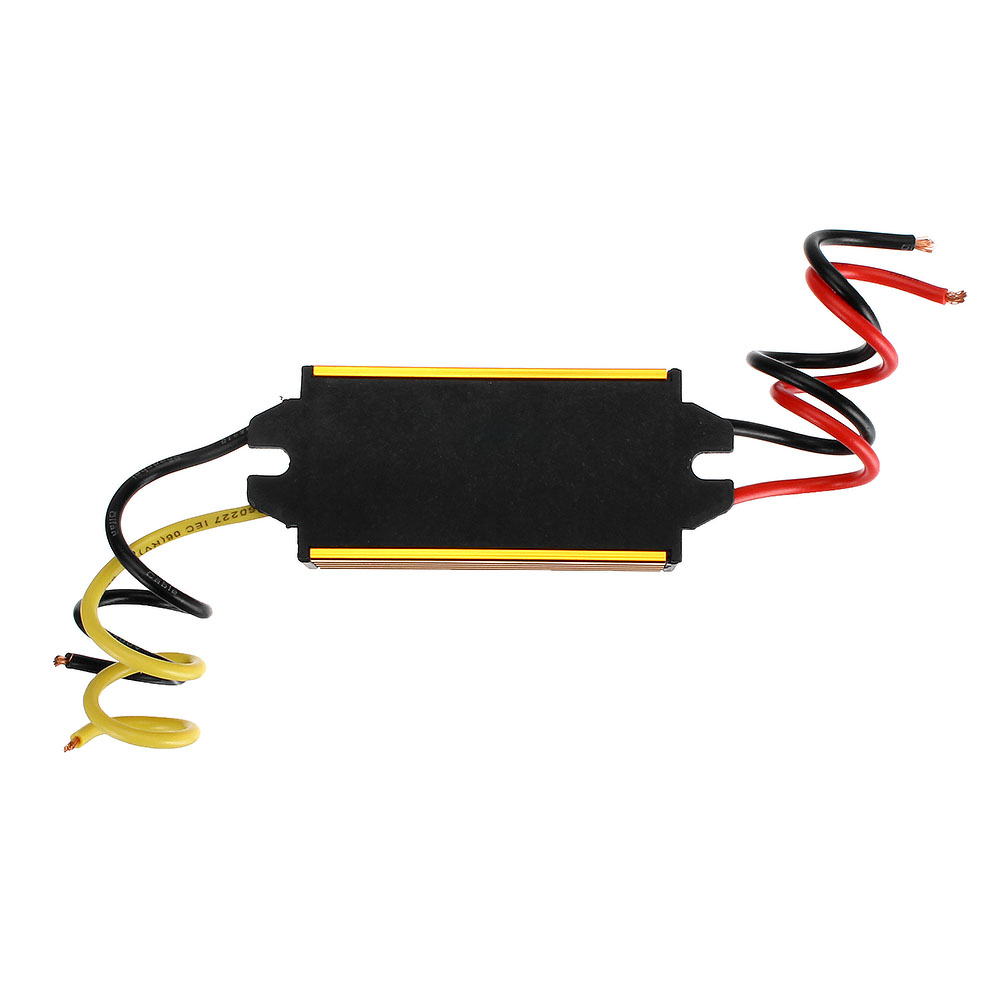

In+: Red wire In-: Black wire
Out+: Yellow wire Out-: Black wire
Weight: 53g Dimensions: 59.3*30.5*21.5mm (L*W *H)
Three wires: 14.5cm Module Type: Non-Isolated buck converter
Working temperature: -20degree - +85degree (industrial grade)(When the temperature is more than 40 degree, please use it in low power or strength heat dissipation)

Note:

1. Please connect the module strictly by the wiring instruction. Or else the module and the load will be damaged
2. In order to make sure that the module has enough power and power, please ensure the power supply has enough power and power.
3. If there are Multiplexed output lines, please distribute load, not combine load.
4. If the output current is up the max output current, please strength heat dissipation ( please leave a room to use, it can prolong life of this module)

Package Included:

1 x DC-DC 12V 24V to 5V 5A Buck Converter









หรือ

ข้อมูลที่เพิ่มขึ้น

SKU GI/BG/1528366
Weight 0.0620
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
