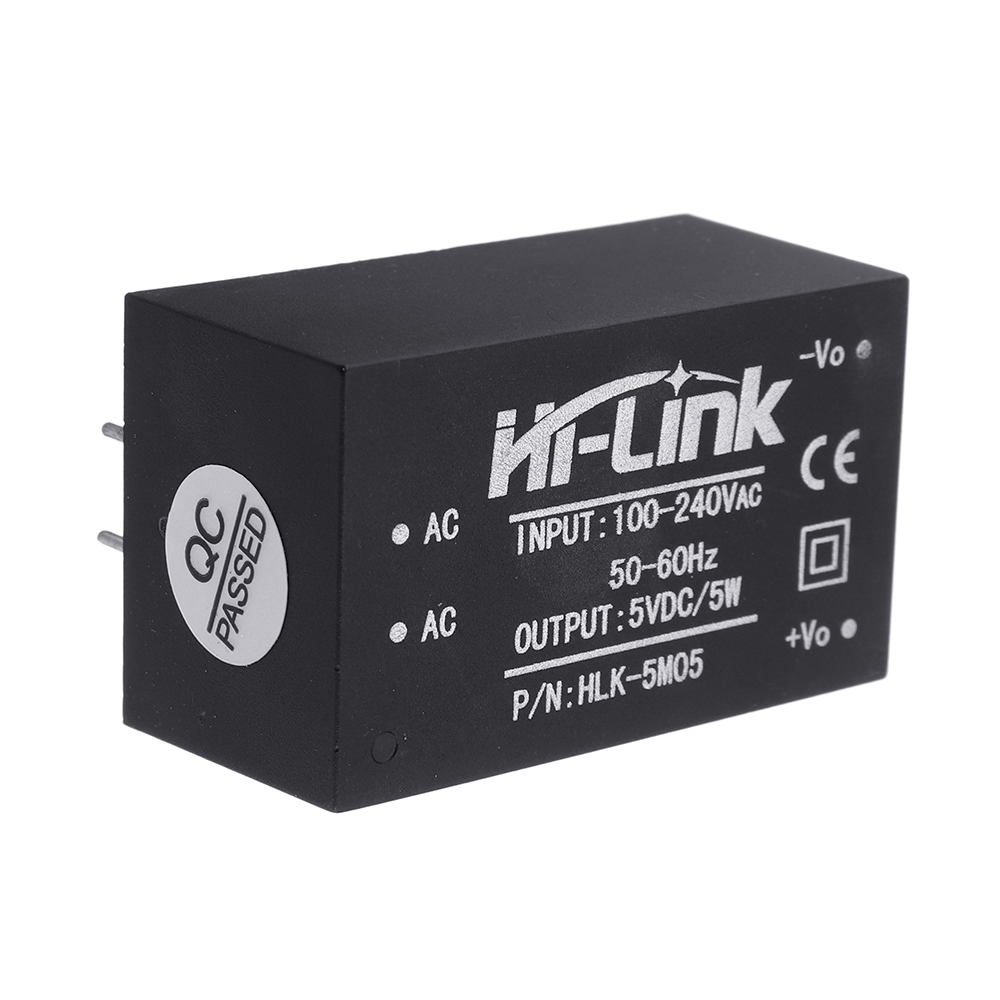

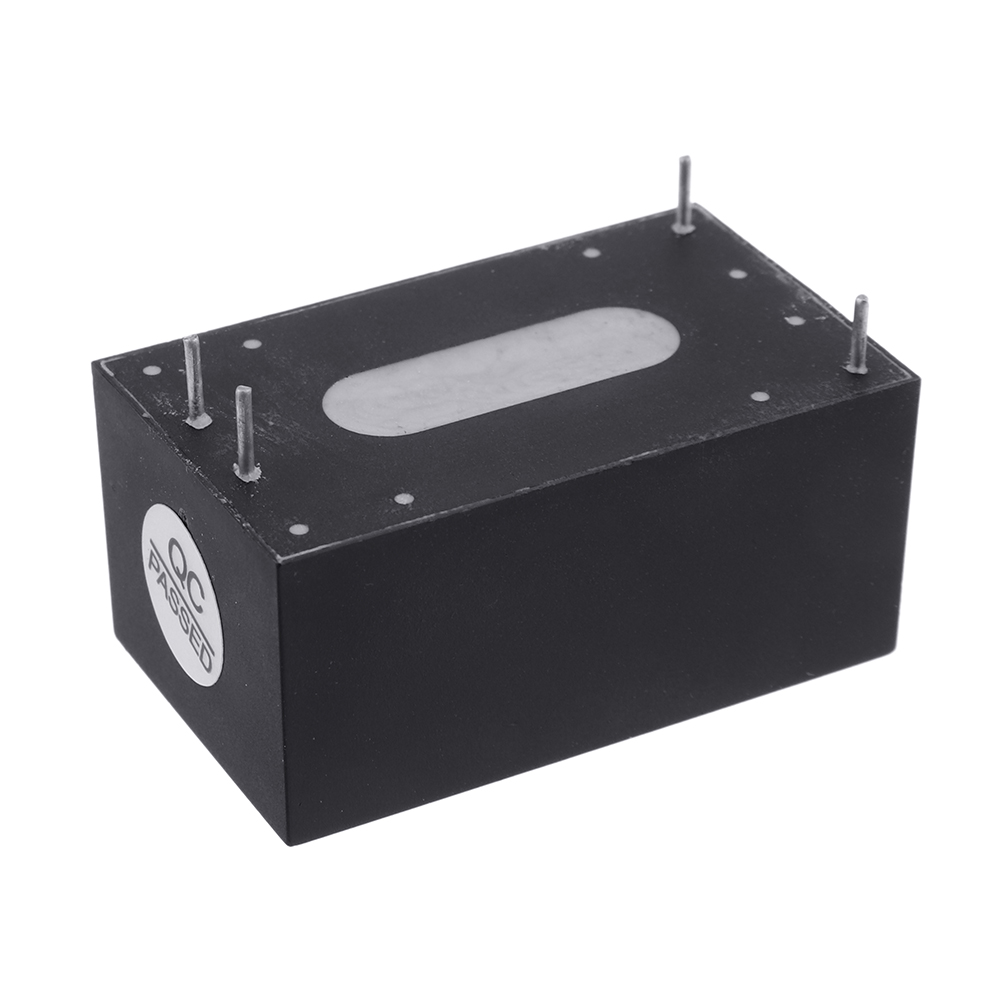

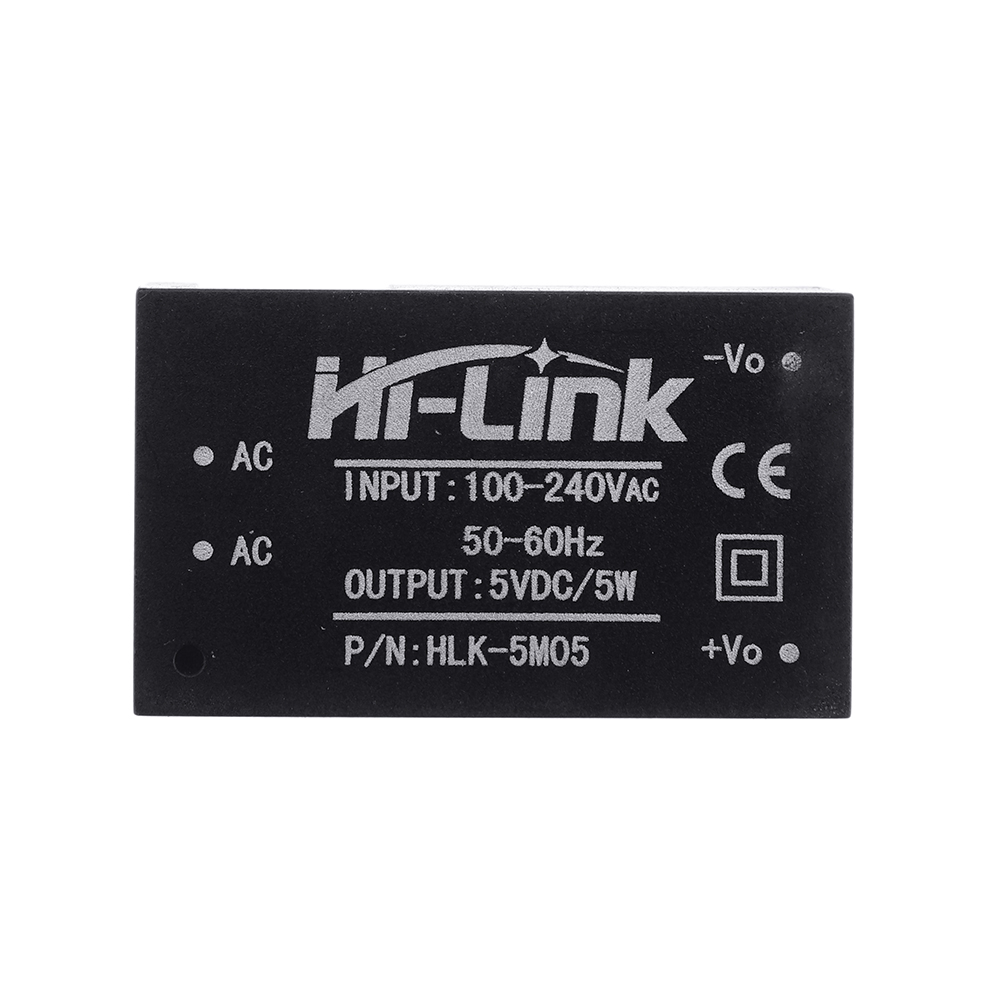

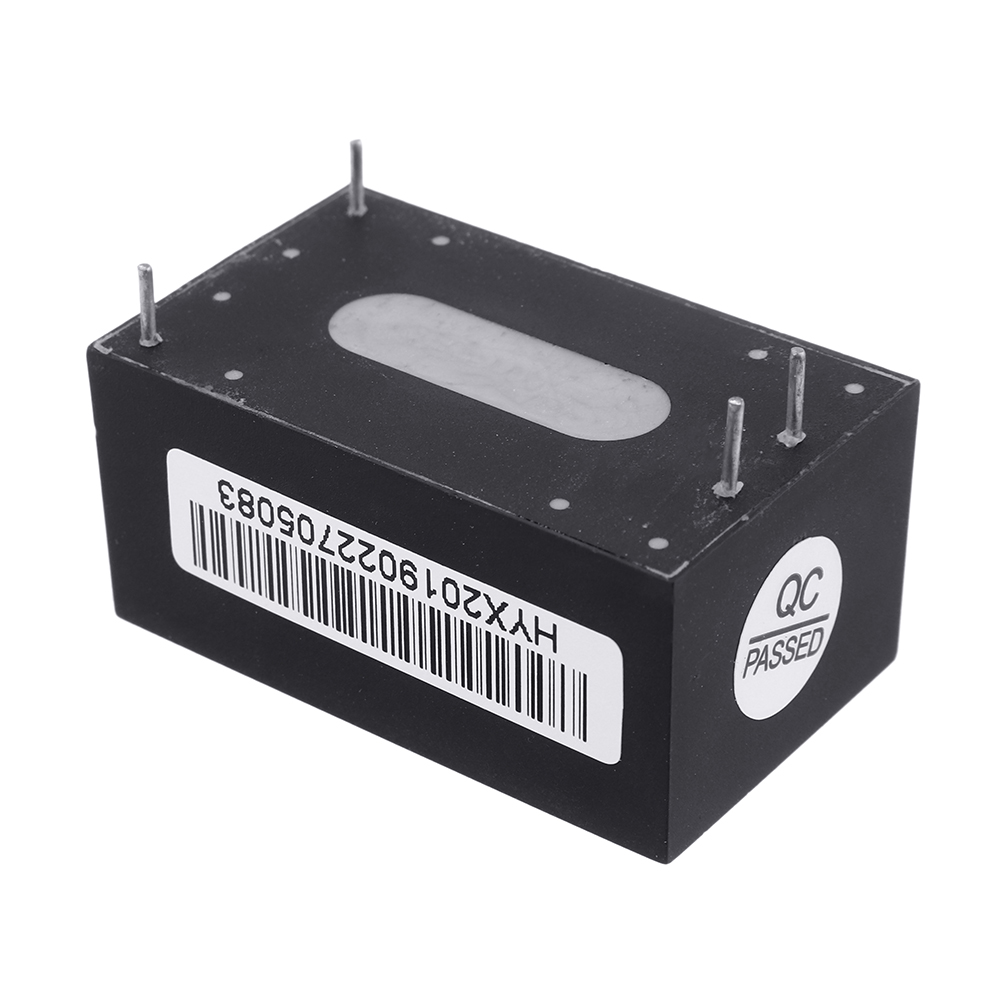

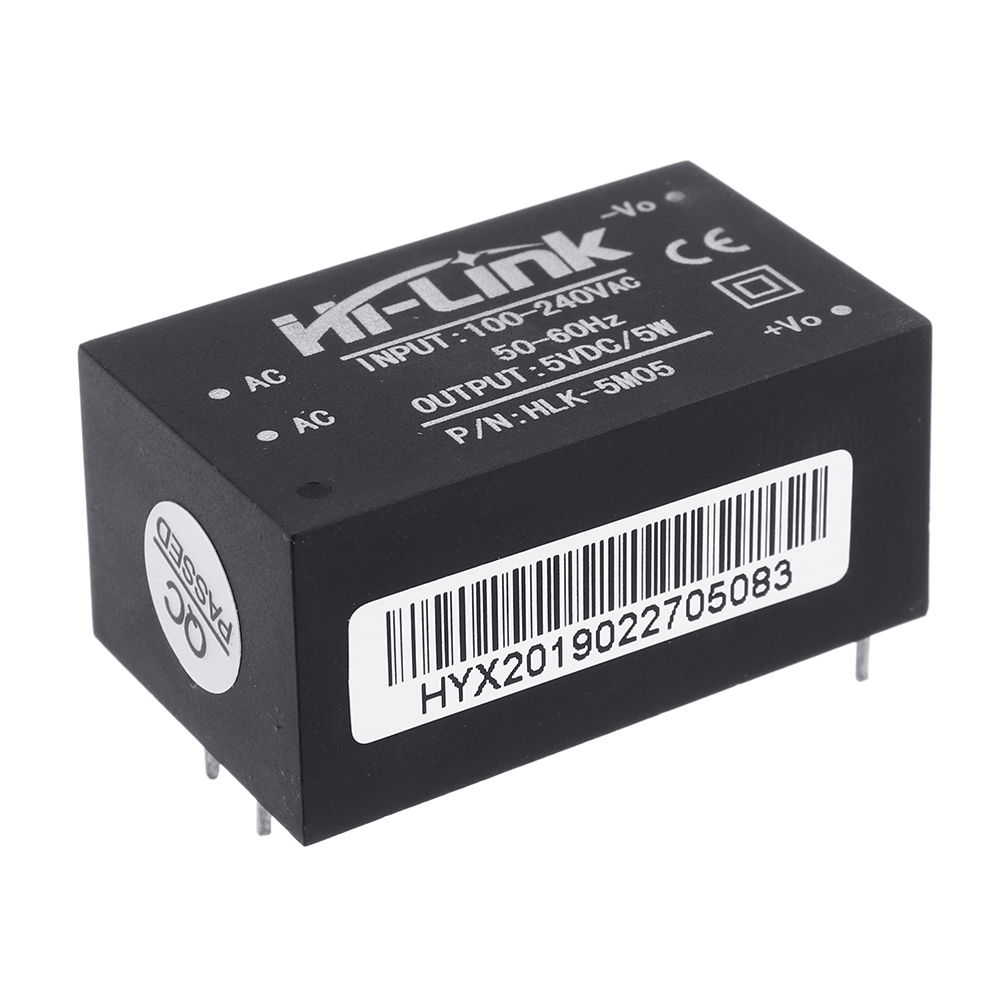

HLK-5M05 AC 100-240V to DC 5V 5W AC-DC Low Ripple Switching Power Supply Module Power Step Down Buck Regulator

Availability: ในคลังสินค้า

ราคาปกติ: ฿332.00

Special Price ฿184.00

You Save: ฿148.00 (45%)

รายละเอียด

Features:

1. Meet UL, CE requirements,
2. Ultra-thin, ultra-small
3. All voltage input (AC: 90 ~ 240V)
4. Low ripple and low noise
5. Output overload and short circuit protection
6. High efficiency, high power density
7. The product is designed to meet the requirements of EMC and Safety Test
8. Low power consumption, environmental protection, no-load loss <0.1W
9.100% load aging and testing

Environment Condition:

Item Name

Technical Criteria

  Unit

Operation Temperature

-20—+60

Centigrade

Store Temperature

-40—+80

Centigrade

Relative humidity

5—95

%

Cooling way

Cooling by radiation



Atmospheric pressure

80—106

Kpa

Sea level elevation

≤2000

m

Vibration

Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes




Electrical Characteristic:

Input characteristics (test at room temperature 20 ℃).
Item NameTechnical CriteriaUnit
Rated input voltage100-240VAc
Input voltage range90-240VAc
Maximum input current≤0.2A
Input current surge                                                                        ≤10A
maximum input voltage≤270VAc
Enter slow start≤50mS
Input Low Voltage EfficiencyVin=110VAc,Output full-load≥69%
Input High Voltage EfficiencyVin=220VAc,output full-load≥70%
Long-term reliabilityMTBF≥100,000h
Load rated output voltage+5±0.1VDc
Full rated output voltage+5±0.2VDc
Short-term maximum output current≥1200mA
The maximum output current for a long time≥1000mA
Voltage Regulation                                                                         ±0.2  %
Load Regulation                                                                          ±0.5%
Output ripple and noise≤70mV
(mVp-p)Rated input voltage, full load. Using 20MHz of bandwidth,
 The load side 10uF and 0.1uF capacitor to be tested.
Switch overshoot amplitude(Rated input voltage and output load plus 10%)≤5%VO
Output over-current protection150-200% of the output maximum loadA
Output short circuit protectionDirect short circuit at the normal output, automatically resume normal operation after a short circuit removal


Package Included:

1 x HLK-5M05 AC 100-240V to DC 5V 5W AC-DC Switching Power Supply
